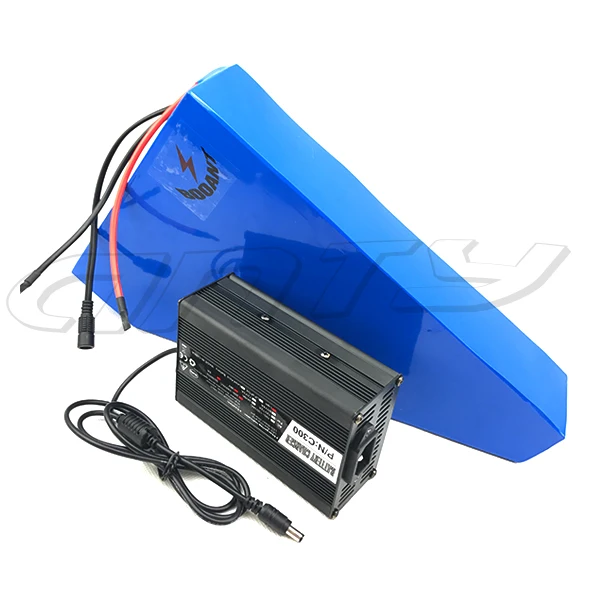

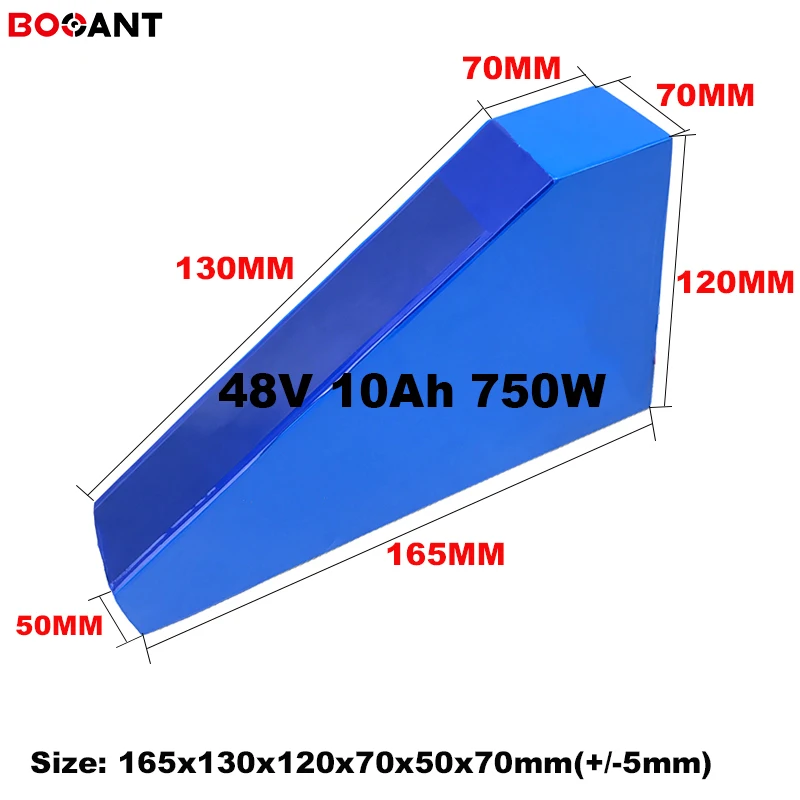

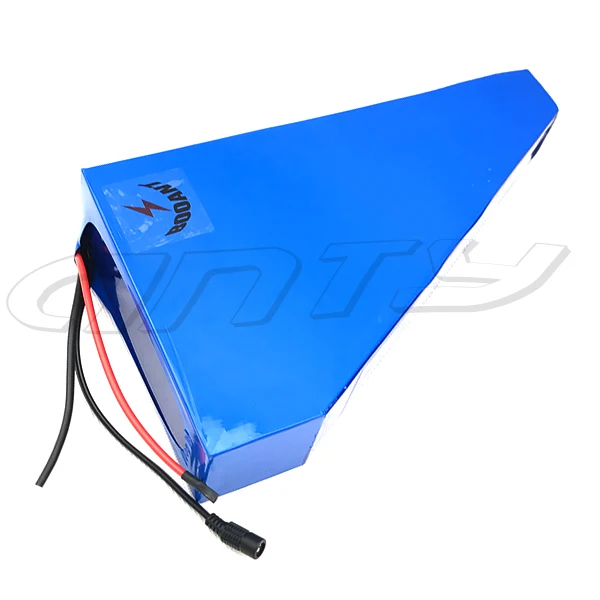

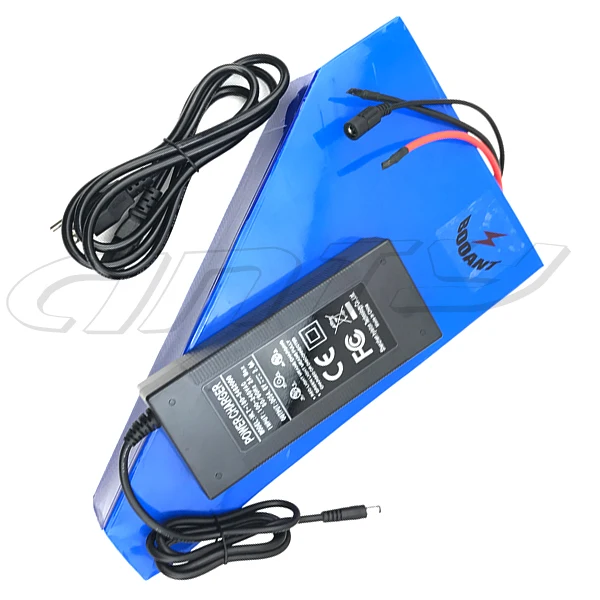

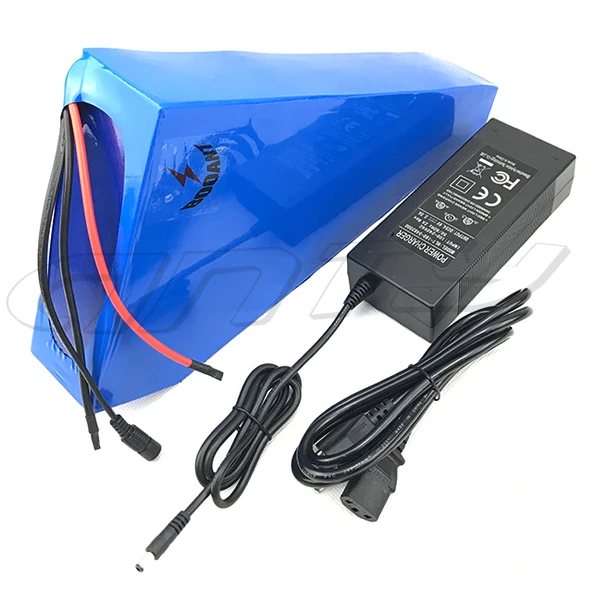

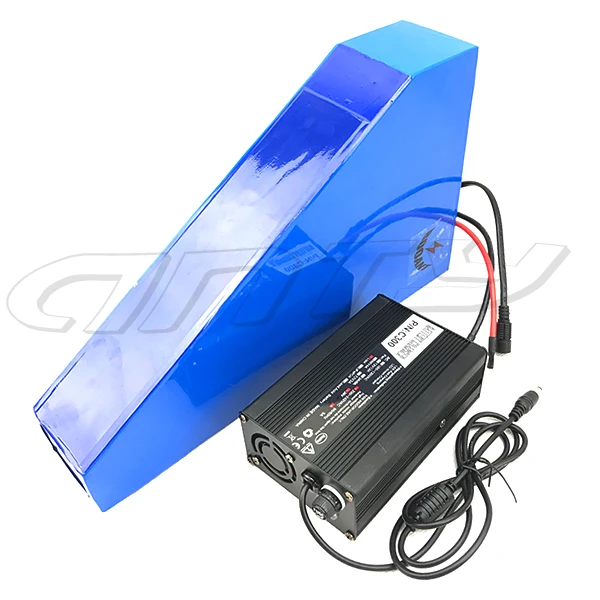

48V 10Ah small triangle lithium battery for Sanyo 18650 cell 13S48V 500W 750W electric bike li-ion battery with 5A Charger 20A BMS suitable motor: 48V 100W--750W Parameter Information List Battery Model 48V 10.5Ah 750W Voltage 48V Capacity 10.5Ah Cell Type For Original SANYO GA 3500mAh 186503.7V cell Cell Combination 13 Series with 3Parallel Charge Way of charge CC/CV Standard charge current 2A Max charge current 5A Charge cut-off voltage 54.6V Cell overcharge protection voltage 4.2V/CELL Discharge Continuous discharge current 20Amp(Max) Peak discharge current 60Amp Cell overdischarge voltage 3.0V/cell Discharge cut-off voltage 39V BMS (Built-in) 20ADischarge current Safety test No fires ,No explosion Over charge safety test Crush safety test Needling safety test 130 C high temperature safety test Weight(Battery) About 2kg Size 165x130x120x70x50x70mm(+/-5mm) Fit motor power 100W--750W(MAX) Working temperature Lowest -20℃ Highest65℃ Cycle life ≥80% capacity after 800 cycles Charging time 5--6Hours / 2--2.5 Hours Application E-Bike,E-motorcycle,E-scooter Warranty One year Product Package： 1. Lithium Battery packs with PVC case 2. Built-in BMS (protection board) 3. 54.6V 5A/2ACharger 4. Power Cable (Supply EU/ UL /AUS/ BS Plug) About Discharge port： Client: We offer these discharge connector as showed on picture.You can choose which one you want,If you have not confirmed in time,we will send the productwhich our main picture showed! About the power cable： Client: We offre these power cable as showed on picture,you can choose which one you Want,if you have not confirmed in time,we will send the power cable that commonly Usedin your country. Product Show： About BMS： Warm Tips：
